Deye 5.12KWh HV Lithium Battery
Create an account
Sign up to see prices

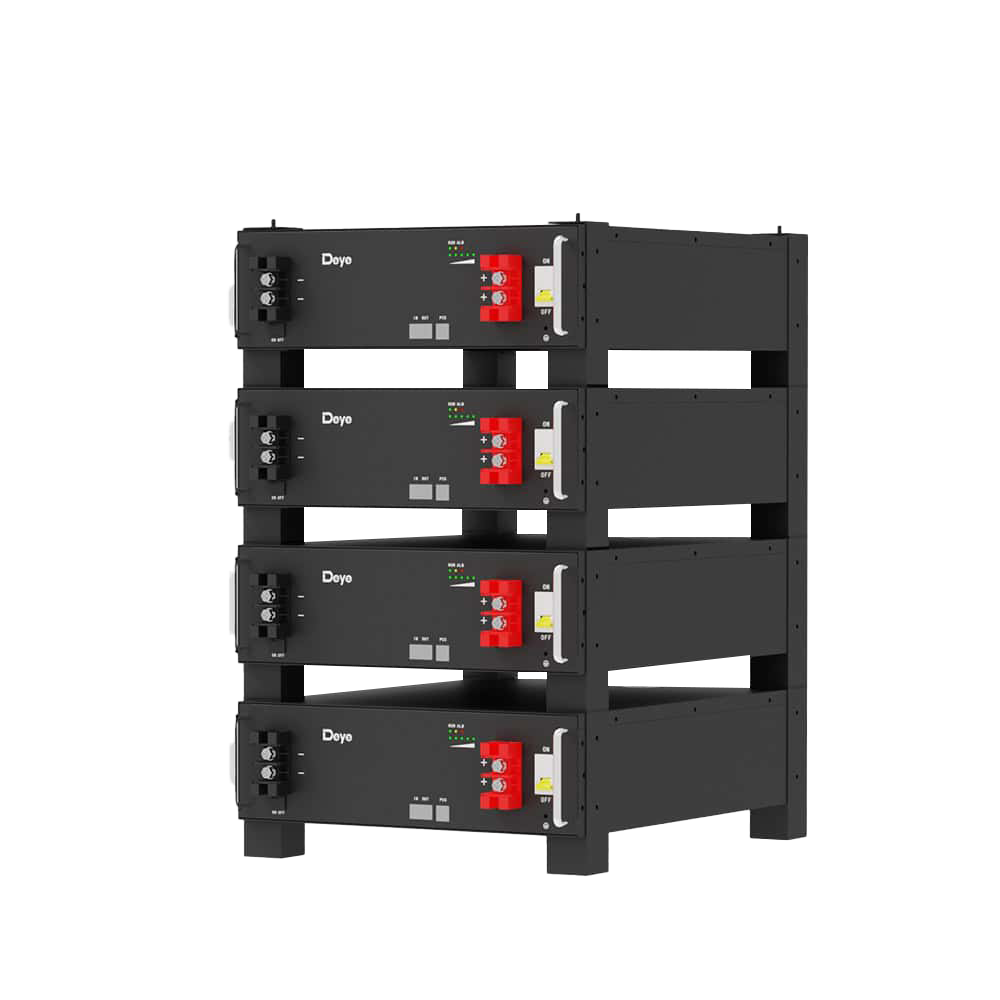

The Deye 5.12 kWh high-voltage battery module (BOS-G Pro series) is a 51.2 V, 100 Ah LFP module that is connected in series to build high-voltage battery clusters for Deye HV hybrid inverters.
Dispatch within 48 Hours : Your product will be shipped quickly.
Description
The Deye 5.12 kWh high-voltage battery module (BOS-G Pro series) is a 51.2 V, 100 Ah LFP module that is connected in series to build high-voltage battery clusters for Deye HV hybrid inverters. Clusters are managed by the Deye HV cluster control box.
Key Features
- 5.12 kWh LFP module, 51.2 V / 100 Ah
- Up to 16 modules in series per cluster
- Up to 16 clusters in parallel
- ≥ 6,000 cycles
- 10-year warranty
Technical Specifications
| Brand | Deye |
|---|---|
| Series | BOS-G Pro |
| Nominal energy | 5.12 kWh |
| Nominal voltage / capacity | 51.2 V / 100 Ah |
| Cycle life | ≥ 6,000 (70 % EOL) |
| Recommended DoD | 90 % |
| Ingress protection | IP20 |
| Dimensions | 440 × 585 × 133 mm |
| Weight | approx. 46 kg |
| Operating temp. | -20 to 55 °C |
| Warranty | 10 years |
Warranty: 10 years
Additional information
| Brand | Deye |
|---|---|
| Type | Solar Battery |
| Filter | Lihtium Battery |
| Capacity | 5.12kWh |
| Unit | Piece |
